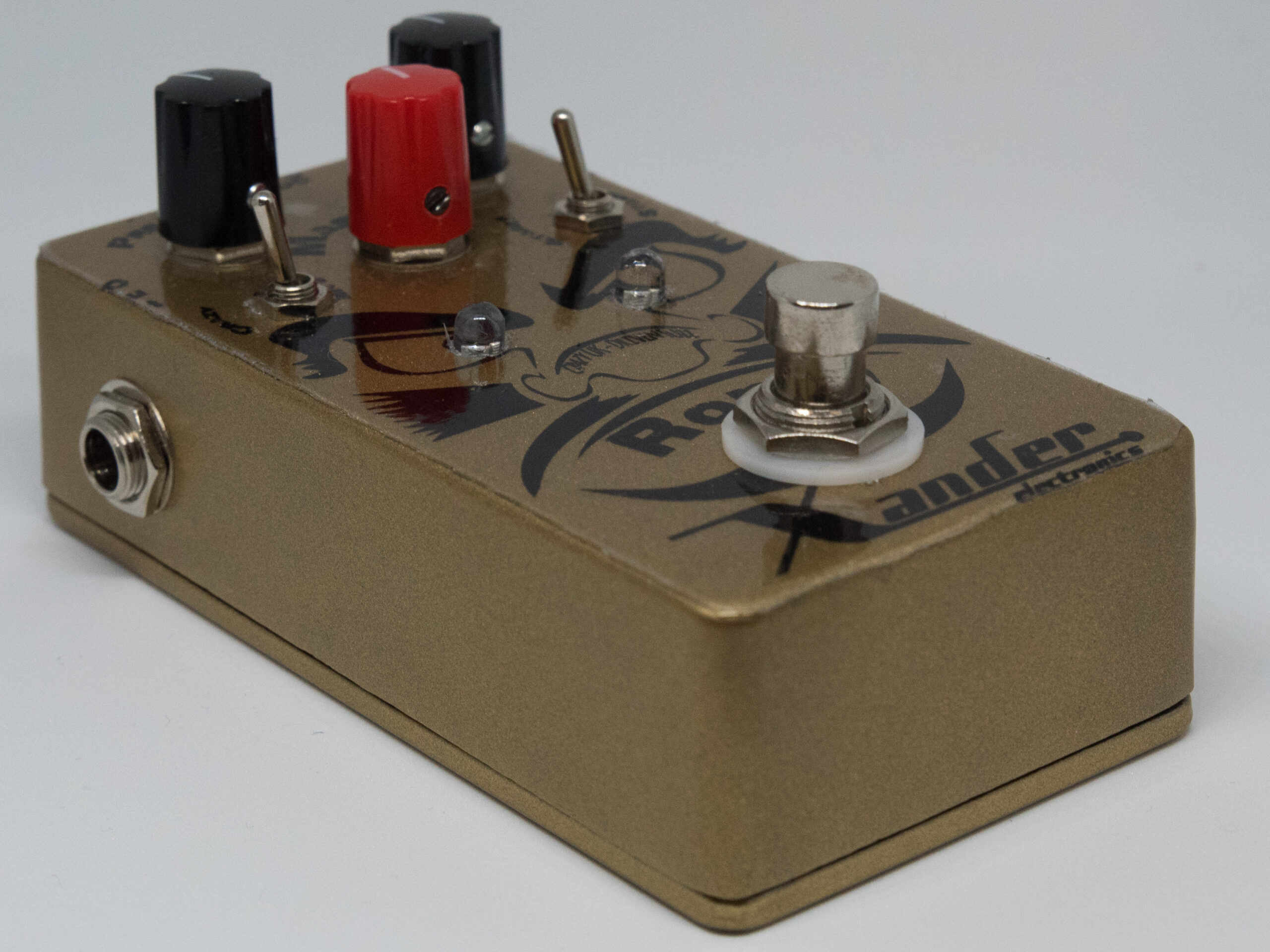

Ronin

A crazy silicon fuzz that can be used in every situation!

The Ronin is a very versatile silicon fuzz designed to achieve very precise fuzz control. It has a very wide headroom and tone it’s not affected by the position in the effect chain thanks to the input buffering. It has two main tones Crazy and Sane studied to be used in different situations just controlling the amount of gain and a single tone knob without strange buzzing very typical in fuzz effects

  • Dimensions: 112.4 x 60.5 x 27.0 mm
  • Power supply: 9V DC
  • Current consumption: 15mA
  • True bypass switching system
  • Controls:
    • Preamp: the amount of gain in the first stage of amplification
    • Fuzz: used as treble booster, increase the high frequencies in the fuzz
    • Master: output volume
    • Crazy/Sane switch: switch between silicon and LEDs as clipping diodes
    • SO1/SO1 switch: switch between asymmetric and symmeric clipping
1
2
3
4
previous arrow
next arrow
1
2
3
4
previous arrow
next arrow
Video demo by JD
Preamp: h10
Fuzz: h11
Master: h12
Sane
SO2
Preamp: h13
Fuzz: h14
Master: h12
Sane
SO1
Preamp: h16
Fuzz: h13
Master: h12
Crazy
SO2
